CHOOSE QUALITY,CHOOSE JCROOF

Stone Coated metal roof tile

  • 11+ years in stone coated metal roof tile industry.
  • The Top 3 Stone Coated metal roof tile exporter in China.

bond tile

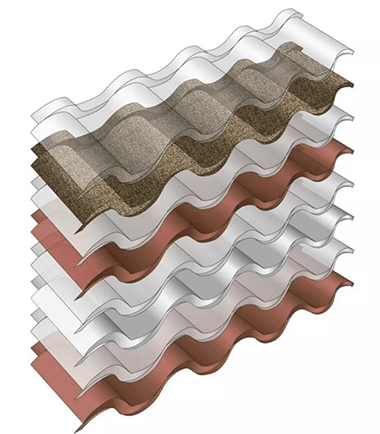

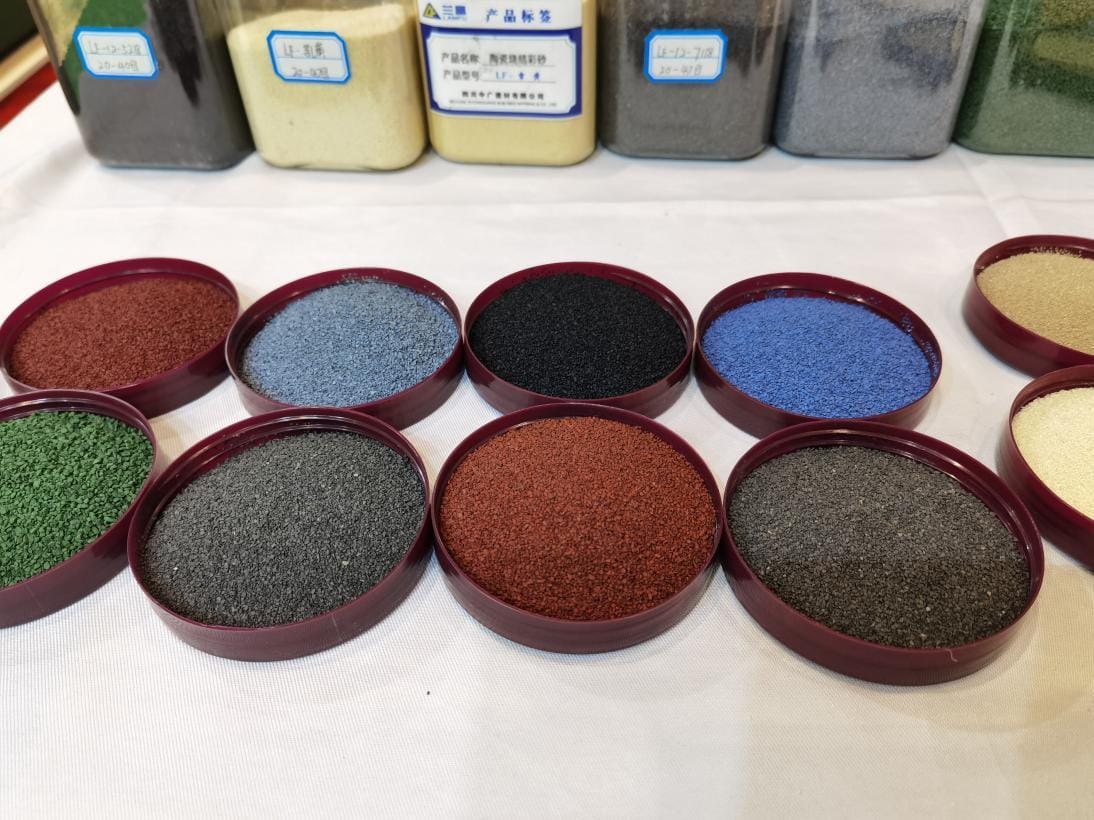

Material:Galvalume steel(Aluminum Zinc plated steel sheet=PPGL), Natural stone chip, Acrylic resin glue

Color:Black, Red, Blue, Green, Brown Black, Black Red, Arctic Blue, Customized

Tile Size:1340x420mm

Effective Size:1290x370mm

Thickness:0.35mm,0.38mm,0.40mm,0.45mm,0.50mm,0.55mm and others(0.2-0.6)

Weight:2.35-3.50kgs/pc

Coverage Area:0.48sq.m./pc

Tiles/Sq.m.:2.08pcs

Certificate:SONCAP, COC, ISO9001, CE

Used:Residential, Commercial construction roof

bond tile – Stone Coated Metal Roof Tile

Bond Tile is a classic-profile stone coated metal roof tile inspired by traditional clay and concrete roofing tiles. It features a distinctive curved shape with a stepped overlap design, creating a strong sense of depth and rhythm across the roof surface.

This tile combines traditional architectural aesthetics with modern metal roofing technology, offering both visual appeal and long-term performance.

The curved profile of Bond Tile allows the tiles to interlock securely, forming a stable and wind-resistant roofing system. When installed, the roof presents a well-balanced and elegant appearance, with smooth lines and a natural tile arrangement that enhances the overall architectural character.

Bond Roof Tile is commonly available in a wide range of colors, including earthy tones, red, brown, gray, and black, allowing it to match various regional architectural styles and climate conditions.

Bond Tile is suitable for residential houses, villas, apartment buildings, and commercial projects. It is especially popular in areas where traditional tile-style roofs are preferred, but higher durability, lighter weight, and lower maintenance are required.

The design inspiration of Bond Tile comes from classic European and Mediterranean roof tiles, symbolizing stability, tradition, and architectural harmony. By combining this timeless design with stone coated metal technology, Bond Tile offers a roofing solution that respects tradition while meeting modern building standards.

We support customization, including color, thickness, and other specifications, allowing the product to be tailored to your specific project needs.

Read More +

Why Stone Coated Metal Roof?

50

years

0.4-0.8mm thick steel sheet with 150g/m2 galvanized aluminum zinc rust-proof coating, providing A-grade rust resistance, lifespan of 50 years without corrosion or perforation.

Noise Reduction

Same sound insulation ability as ceramic roof tiles or asphalt shingles, no need to be disturbed by the sound of rain.

fire proof

Made of steel material, A-class fire resistance, safer and more reassuring.

Hail Prevention

Ceramic tiles or PVC tiles can be damaged in hail weather, but for metal tiles 0 worry!

Hurricane Resistance

Lightweight yet sturdy, able to effectively withstand strong wind of 60-80MPH.

Weather Resistant

With UV resistant high quality surface glue, and high temperature colored baking stone chips, 15+ years no worry of color fading issue.

light weight

Only 5-8Kg per square meter, the weight is only 16% of traditional ceramic tiles, greatly reduces the load-bearing capacity of building structures.

Environmental

Metal material and natural stone, without any pollution issues.

Low Maintenance

No damage or other minor issues, benefit from one installation for a lifetime.

Cost Effective

Compared to other types of roof tiles, there is no significant increase in cost.
